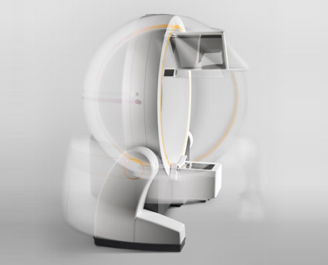

ROBOTIC IMAGING (DRIVING PROCEDURAL AUTOMATION)

• Laser guided level finding and incision planning
• Automatic scanner motion based on stored positions for parking and scanning
• Non-isocentric imaging through independent movement of flat panel detector and X-Ray source
• Automatic alignment of imaging position to a navigation instrument for 2D verification

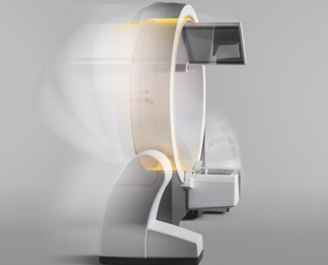

UNMATCHED FLEXIBILITY (OPTIMIZING SURGICAL WORKFLOWS)

• Flexible imaging setup provides freedom for indication-specific positioning
• Extra-large field of view delivers more anatomical insights
• Beam collimator optimizes image quality while sparing surrounding structures
• Deep integration with Elements planning software, Navigation, and Cirq Robotics
• Supports surgical excellence in spine, trauma, ENT, CMF and stereotactic neurosurgery

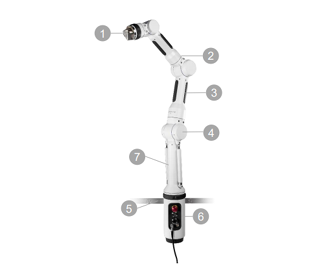

CIRQ (SLEEK ARM DESIGN)

• Port for different modules
• Multisegment LEDs indicate system status
• Integrated grip sensors activate separate parts
• 7 degrees-of-freedom for highest flexibility
• Attachment to standard O.R. table side rails
• Fully integrated computer unit with no footprint
• Portable, light-weight design (11.5kg | 25lbs)

CIRQ (ALIGNMENT MODULE SPINE)

• Seamless workflow with navigation-ready instruments including tissue protecting trocar for minimally-invasive surgery
• Provides stable procedure support when locked in place after alignment and with sharp teeth anchoring on the bone
• Vendor-neutral compatibility with multiple implant sets
• Mainly reusable components keep disposable costs per case to a minimum

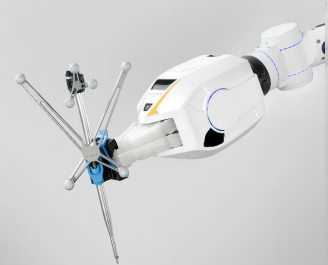

CIRQ (ROBOTIC ALIGNMENT MODULE SPINE )

• Automatic alignment to planned screw trajectory after manual arm positioning
• Cirq Alignment Software provides visual guidance towards region of interest
• Real-time tracking of instruments including trocar for drilling preparation and drill guide
• Drill guide teeth designed for forceless anchoring on the bone
• Drill guide length suitable for various patient anatomies
• Four-marker patient and instrument arrays ensure robust tracking

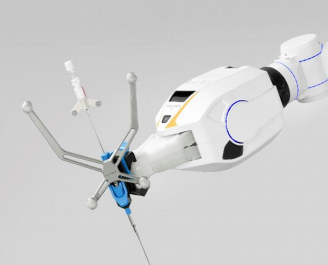

CIRQ (ROBOTIC ALIGNMENT MODULE CRANIAL)

• Automatic alignment to planned biopsy trajectory after manual arm positioning
• Cirq Alignment Software provides visual guidance towards region of interest
• Dedicated 3.4mm drill guide helps keeping incisions small
• Special biopsy anchor for the skull adds stability to the setup
• Pre-calibrated biopsy needle with guide tube facilitate seamless performance

CIRQ (100% NAVIGATION INTEGRATION)

• Leverages established workflows, set-ups and instrumentation
• Compatible with Kick and Curve navigation platforms

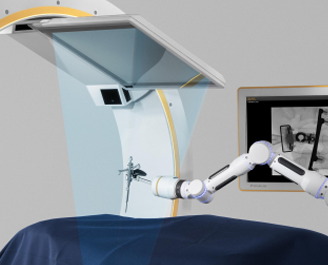

• Ideal in combination with intraoperative imaging such as Loop-X, Airo or C-arms as Cirq remains at the OR table during scanning
• Features software for setup guidance and benefits from Elements software for detailed approach planning
• Future-proof modularity with building blocks for simple switch of modules

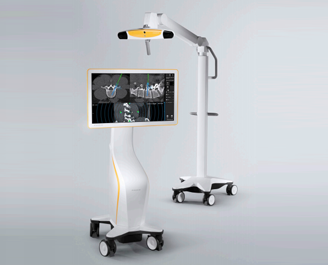

CURVE INTO DIGITAL SURGERY

The latest evolution of Curve is the most versatile navigation solution from Brainlab and your mobile entry into digital surgery. Supporting a flexible O.R. setup, full Digital O.R. integration and 4K visualization, Curve is your reliable digital expert that simplifies and personalizes workflow steps before, during and after surgery.
